Nexxtender

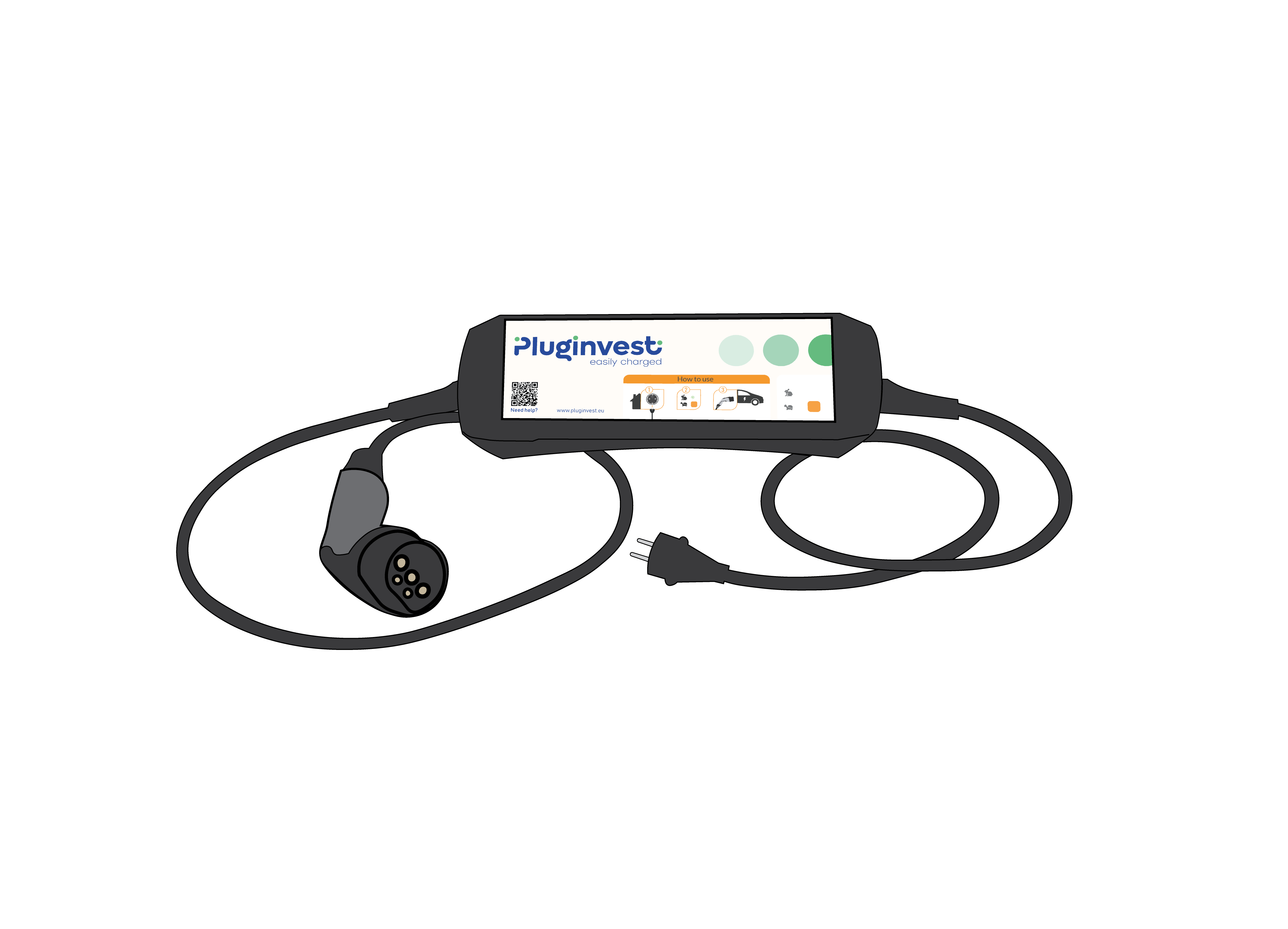

Smart Cable

Charge your EV at home, at work or wherever you prefer with your Smart Cable. No installation required! Just plug in your Smart Cable in a socket and start charging, wherever you are!



Charge your EV at home, at work or wherever you prefer with your Smart Cable. No installation required as everything works on an intuitive connection process. Just plug in your Smart Cable in a socket and start charging, wherever you are! The Smart Cable is a simple way to combine electric mobility and the reimbursement of your energy consumption at home or on the road. Just connect the Nexxtender Black or Red to your standard 230V or 400V socket (you may need an adaptor) and your electric car and you’re ready to charge!








The Smart Cable sends your energy consumption data to our online platform wirelessly and we set up your expense report for you. The data communication happens over the SigFox IoT network or via Bluetooth and gets sent to the smartphone of your employee . Of course, the Smart Cable adheres to all necessary IEC and EN norms and regulations of the national legislature and of the European and International legislature.


Discover all its benefits

Simple, Quick and Smart

This Smart Cable does not require installation. Just stick in the power outlet and charge it! The Black model is ideal for Plug-in Hybrides. The RED model is a three-stage solution that is even more powerful. The Smart Cable is also connected to the Nexxtmove platform, which can track all costs, among other things.

Charging Speeds

With these Smart Cables you can select two different charging speeds. This gives you full control over the load on your electric network so you can prevent your fuses from blowing. With the Black model you can charge up to 15km per hour. With the three-phase Red model it goes up to 50km per hour. It’s also possible to order a single-phase adaptor for this model.

At home or on the go

The Nexxtender Smart Cable is an ideal solution for charging your EV at home. But due to its versatility, it’s also very easy to use it on the go without installation. The charging status is also clearly indicated by several LED-lights.


Smart functions

This Smart Cable is always connected to our Online Platform and is fully functional all over Europe. Once you’ve completed your registration, it’s extremely straightforward to follow up on your consumption via the smartphone App. This allows you to keep tabs on your charging activity, the GPS-localisation and you can even view and manage the cost of consumption.

A Smart, mobile charging cable at home or on the go.

Our Smart Cable is a handy and straightforward charging solution that doesn’t require any installation at all. The principle of Plug & Play means you can charge anywhere at any time, given there’s a socket nearby. The Smart functions make it that the management of this charge cable become child’s play.

Get your quotation

Technical specifications

Download technical specs


Charging specifications

Vehicle interface

Voltage and Amperage

Maximum charging power (output)

Network frequency

Power supply (connector)

IEC conformity


Terms of use

Environment: IP55 Inside/Outside

Humidity: up to 95% non-condensed

Temperature: -20°C to +50°C

Power consumption in stand-by: 3 W


Design specifications

External housing: Polyamide

Cable length: extremity of power supply connector: 1,7 m -

vehicle extremity: 4 m

Estimated delivery weight: 3 kg

Dimensions (HxWxD): 380 mm x 115 mm x 80 mm


Certificates

Safety: residual flow according to IEC

62752:2016 (AC 30 mA DC 6 mA)

Communication: Sigfox readyTM

Product: Product declaration in accordance - CE

Markings




Mobile Black

Type 1 of Type 2 connector

230V AC bij 6 A of 10 A

2,3 kW

50 Hz

Schuko® CEE 7/7

Mode 2 per IEC 62752: 2016


Mobile Red

Type 2 connector

3 x 400 VAC + N bij 6 A or 16 A

11 kW

50 Hz

Mennekes® 13a ProTop (16A 5pol 400 V M)

Mode 2 per IEC 62752: 2016


Advanced functions

Connectivity: Sigfox, BLE (Bluetooth Low Energy 4.2)

memory: Data costs

Location: GPS (while charging)

Internal battery: for internal clock, GPS and Sigfox-messages

button: touch button to select the output

Status: LED status indicator

Management platform: Nexxtmove

Upgrade from distance: A software update via de Nexxtmove App
